Fuel injector micro filter removal tool

Injector service parts · Sold by Partsapiens

Every wear part on the injector.

Removal tools, retaining clips, micro basket filters and OE‑matched repair kits.

Shop the removal tool Browse repair kits

Tool gallery

Injector micro-filter removal tool — main view

Universal injector rebuild kit

See the Partsapiens rebuild tray, micro filters and removal tool in action.

The shop

Kits, components & tools

Pick your injector or your engine code — the kit matches.

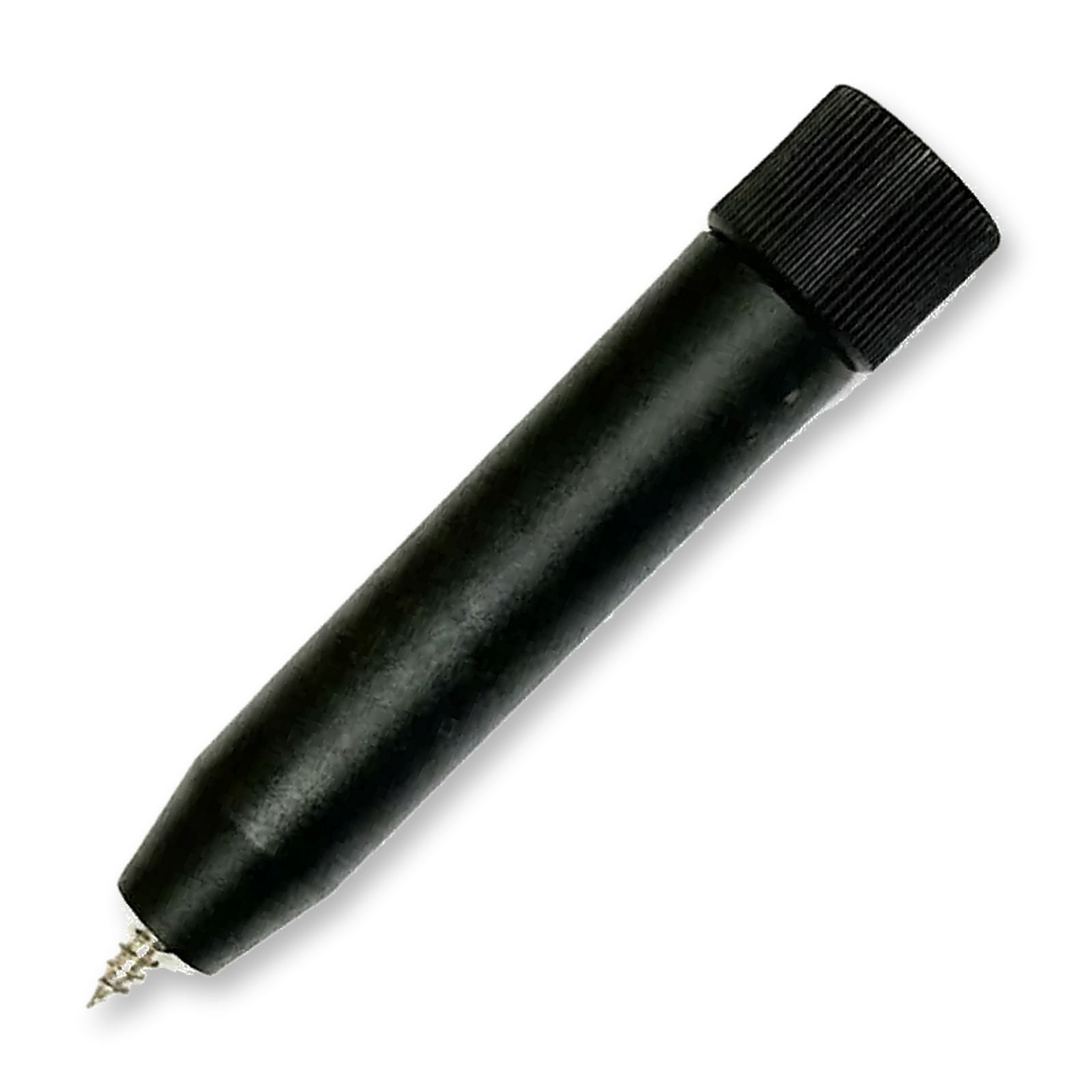

Fuel Injector Micro Filter Removal Tool

Removal Tool

★★★★★ 4.7 · 60 ratings · 4.3 · 16 ratings on Amazon

Pulls the micro filter out of the injector inlet — the step most rebuilds skip.

Hardened steel · Works with EV1 / EV6 / EV14 top‑feed injectors

Fits: EV1 · EV6 · EV14 (serviceable basket) M20M50M52M54M62S14S52S54S62
from $14.99
30-day returns · Secure checkout

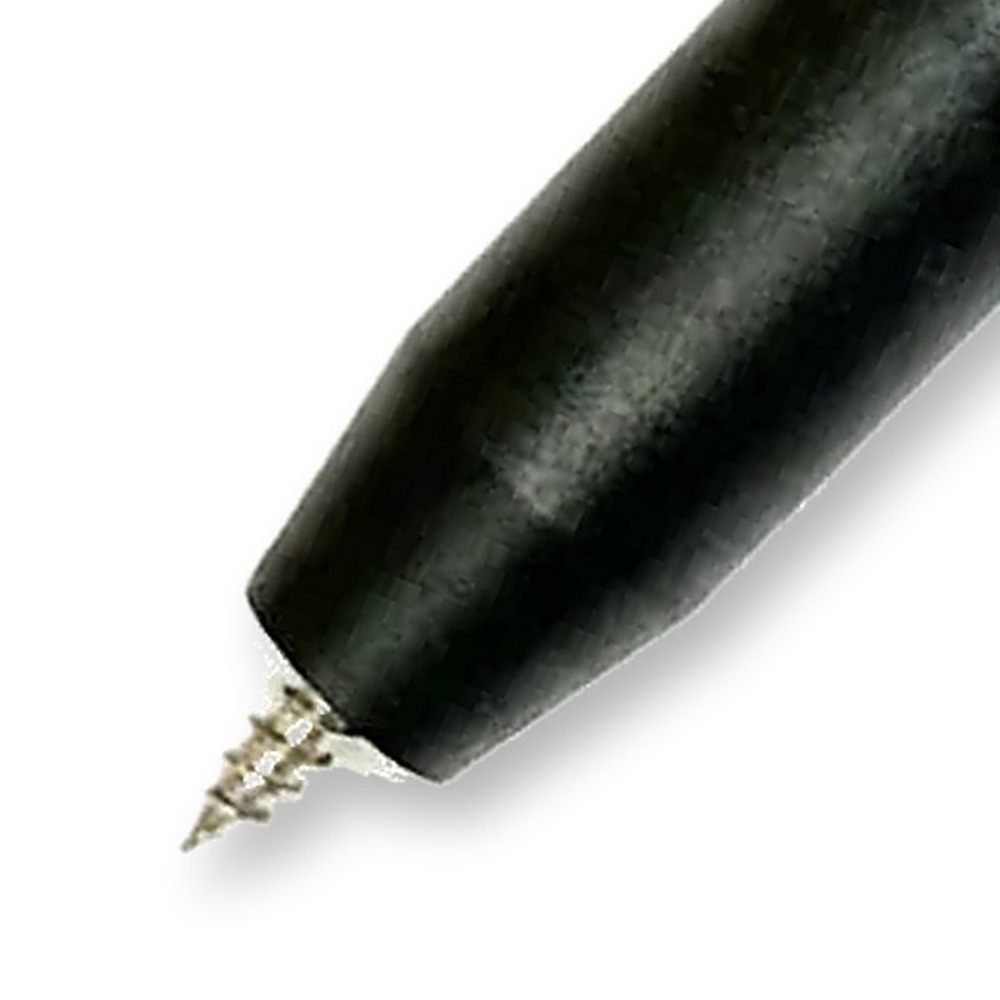

  • Self-threading tip bites the old filter
  • Fits ~6 mm basket filters (EV1 / EV6 / EV14)
  • Reusable · Made in USA
Full description & details

The injector-service puller in the Partsapiens catalog: a self-threading tip draws spent ~6 mm basket filters out of top-feed injectors — EV1 and EV6 designs, plus EV14 units whose basket can be serviced. Screw the tip into the worn filter, turn, and lift the filter clear; nothing gets drilled, pried at or picked. Order it on its own, or bundled with 4, 8, 12, 24 or 50 fresh micro basket filters.

Need the pro rebuild kit or a dedicated tool storefront? Also on injectortool.com (tool + 200-pc EV1 kit with 1 removal tool in the box).

Same brand · graphic tees at fltwht.com · also on Etsy.

Fuel injector retaining clips

Retaining Clips

Quick-lock stainless retaining clips for Bosch and USCAR-style injectors. Keeps serviced injectors seated and sealed.

61001 · 61002 · 61003 · 61004 · 61004-1

from $8.99

Compatible with common Bosch/USCAR injector bodies.

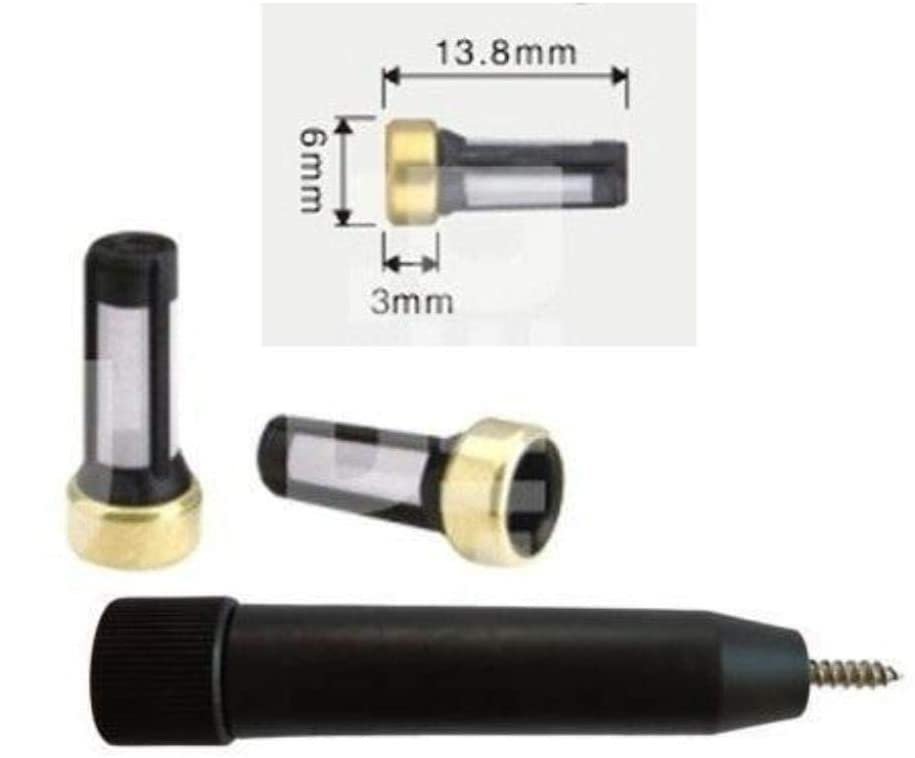

Micro basket fuel injector filters 6x3x13 mm

Micro Basket Filters 6×3×13

The tiny filter inside the injector inlet — replace it, don’t clean it.

Stainless mesh · Red and blue · 25 / 50 / 100‑packs

from $9.99 Shop filters

Bulk packs for shops and rebuilders

Fuel injector repair kit for OE 03C906036M

Repair Kit — RK‑4109

O‑rings, seals, spacer and micro filters for one injector — or a full set.

OE 03C906036M · 1 / 4 / 6 / 8‑injector sets

from $11.49 Shop kit

Matched by the OE number on your injector

OE fuel injector repair kits

Repair Kits by Engine Code

Complete refresh sets with O-rings, micro filters, pintle caps, and seals. Covers common BMW engine families.

M20 · M50 · M52 · M54 · M62 · S14 · S52 · S54 · S62

from $13.49

Each kit includes O-rings, micro-filters, and pintle caps/seals. Full kits by OE number are on the Repair Kits page.

EVAP smoke machine leak detector

EVAP Smoke Machine

Find vacuum and EVAP leaks fast — the Warehouse pick for the home shop.

Warehouse · Ships from the US · Free shipping

$98.99 View product

More tools in the Warehouse

Why mechanics choose our tool

No drilling or prying
The tip threads into the old filter so it pulls straight out instead of being dug out with picks.

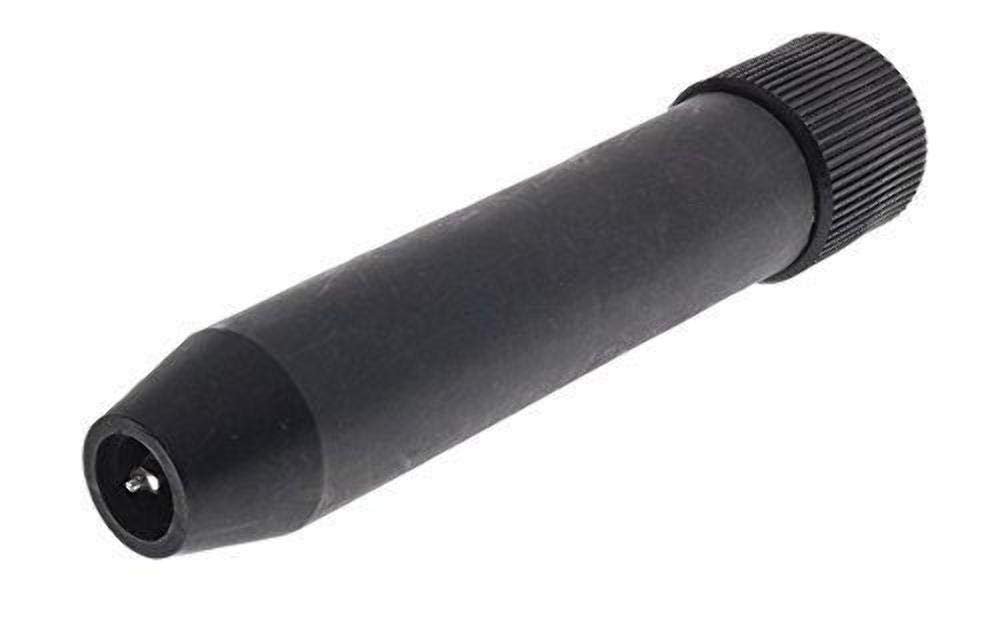

Seats the new filter too
Flip the tool and use the flat press-end to push the new basket in squarely.
One tool, many injectors
Reusable: one tool services many injectors. Made in the USA.

Before you start

  1. Wear eye protection and gloves, and work away from sparks or flame.
  2. Remove the injector and take off the top (fuel-rail) O-ring — the old basket filter sits in the inlet underneath.
  3. Check that your injector has a serviceable ~6 mm basket filter (some EV14s don't).

Removing the old filter

  1. Put the self-threading tip into the centre of the old basket filter.
  2. Turn the tool so the thread bites into the filter screen.
  3. Twist and pull straight out along the injector axis; discard the old filter.

Fitting the new filter

  1. Place a new micro basket filter squarely in the inlet.
  2. Use the tool's flat press-end to push it fully home without crushing it.
  3. Fit a new FKM O-ring of the matching size and reinstall the injector.

Shipping & returns

Orders ship within 1–2 business days. US shipping only for now; we can’t accept international orders at the moment. Unused items can be returned within 30 days — email partsapiens@gmail.com.

Full shipping & returns policy → · Leave feedback →

FAQ

Will this tool damage injector nozzles?
It is designed to avoid that: the tip threads into the filter screen rather than the injector body, and the filter is pulled straight out with no drilling or prying. Work gently and keep the tool in line with the injector.
Which filters fit?
Any top-feed injector fitted with a ~6 mm micro basket filter: EV1 and EV6 designs, plus EV14 units whose basket can be serviced. A few EV14 filters are fixed and cannot come out, and the tool is not made for side-feed or bottom-feed injectors. Check your injector before ordering.
Do you ship internationally?
Not right now. US shipping only for now; international orders are temporarily unavailable.
