EVAP Smoke Machine — Dual-Mode Leak Detector with Built-In Air Pump

EVAP Smoke Machine — Dual-Mode Leak Detector with Built-In Air Pump

$119.99Save \u2248 $6

Typical price ≈ $126 — priced below market, shipping included.

Condition: New

Dual-mode smoke machine with a built-in air pump: pressure-test in Air mode first, then switch to Smoke mode and watch the leak show itself. Panel gauge and flow meter built in.
  • Dual air + smoke modes with built-in air pump
  • Panel pressure gauge and adjustable flow meter
  • Visible smoke in about 10 seconds — 12V battery clamps included
  • EVAP, intake, exhaust, crankcase and turbo leak tests
Priced under the market to move.

Free tracked US shipping — delivery in up to 8 days. Tracking emailed when your order ships.

30-day returns on unused items in original packaging — handled by us in the US.

US seller. Questions? Email partsapiens@gmail.com — a person answers.

VisaMastercardAmexApple PayGoogle PaySecure Stripe checkout

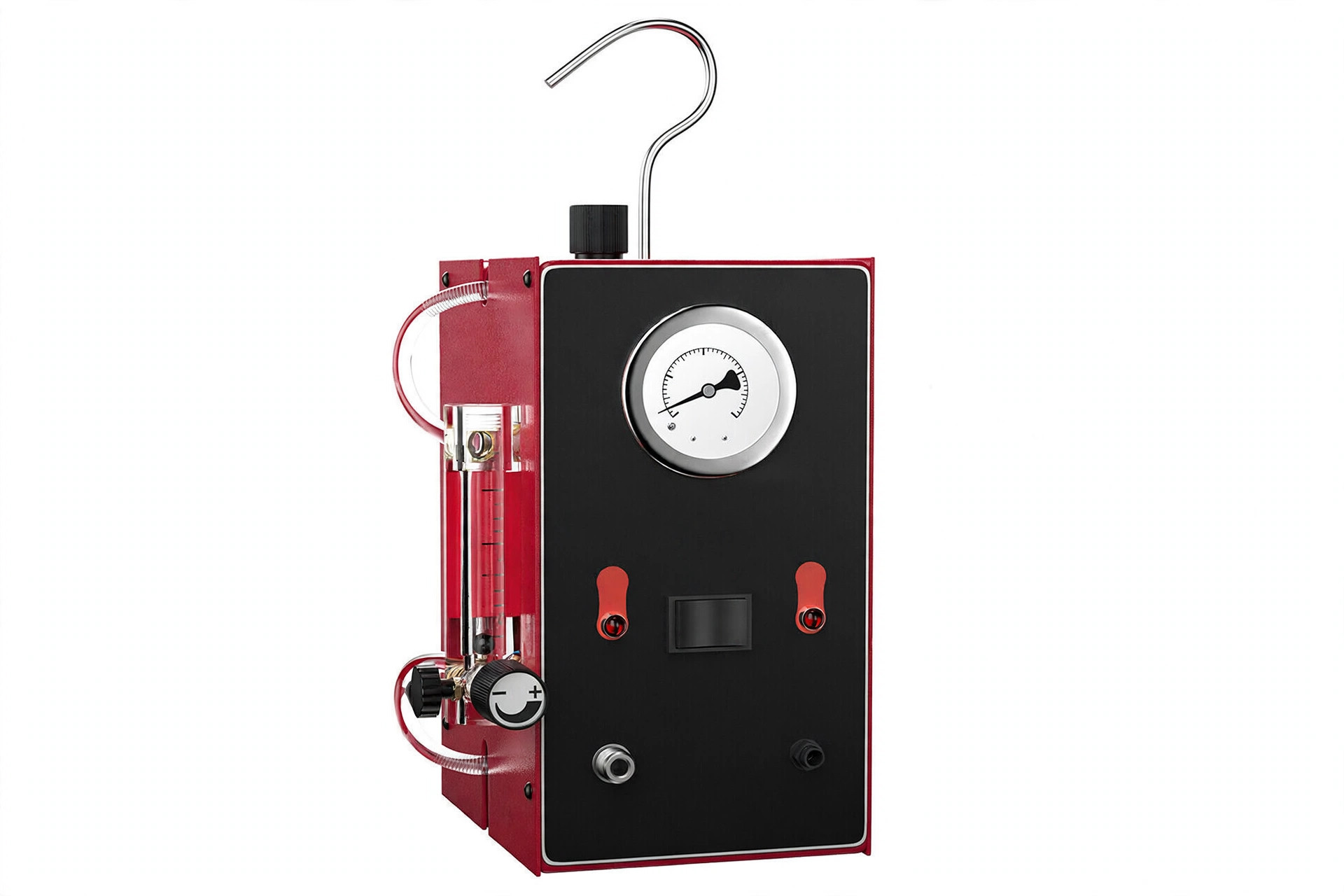

Two test modes in one unit. Air mode pressure-tests the sealed system first, so you know a leak is there before spending test oil; Smoke mode then fills the system with visible smoke and the wisp escaping marks the exact leak point. The built-in air pump means no shop compressor is needed, and the panel pressure gauge and adjustable flow meter keep the test controlled. Runs off a 12V vehicle battery.

  • EVAP system and fuel tank leak tests
  • Intake, exhaust, crankcase and turbo pipework tests
  • Visible smoke in about 10 seconds
  • 12V DC — battery clamps included, along with cone adapter, nozzle cone and EVAP cap set
  • Runs on baby oil / mineral test oil (not included)

Why this one

Dual air + smoke modes with a panel flow meter — pressure-test first, then smoke, no shop compressor needed.

PowerDC 12V (vehicle battery), 6A
Air pumpBuilt in
ModesAir mode + smoke mode
Output pressure0.8-1 PSI
Flow rateUnder 6 L/min
Works onPassenger vehicles, motorcycles, ATV, heavy-duty/commercial
Unit size6.46 x 3.45 x 4.66 in
Product weight3.05 lb
Warranty3 years (manufacturer)

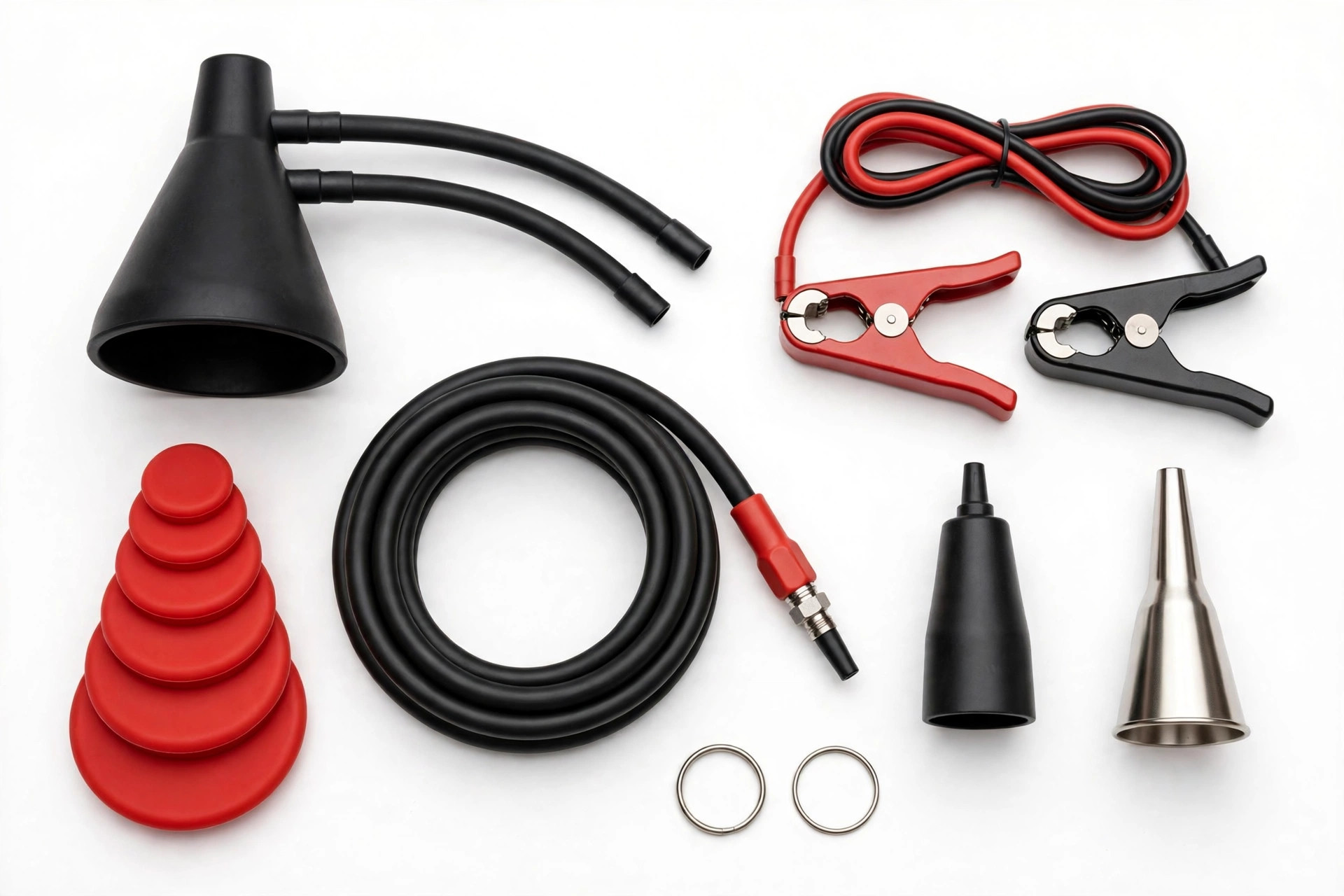

  • Smoke machine unit with built-in air pump
  • Smoke delivery hose with probe
  • Universal cone adapter
  • Metal nozzle cone
  • EVAP cap set (graduated sizes)
  • Battery clamps with power cable
  • Sealing rings

Quick start

  1. Fill the tank with 10-20 ml of test oil (baby oil; not included).
  2. Connect the clamps to a fully charged 12V vehicle battery.
  3. Seal the system with the cone adapter or the EVAP caps and run Air mode first to confirm a leak is present.
  4. Switch to Smoke mode, set the flow dial, and watch for the wisp of smoke marking the leak.
  5. Disconnect the power cord from the battery when done.

Full manual PDF — being prepared; it is imported from the source documentation when available and posted here. Questions meanwhile: partsapiens@gmail.com.

Free tracked US shipping — delivery in up to 8 days. Your card is charged at checkout through Stripe; the total you see at checkout is final, and tracking is emailed to you when your order ships.

30-day returns on unused items in original packaging. Email partsapiens@gmail.com first for return instructions — returns come back to us in the US, not to an overseas warehouse.
